10.Ring Busbar configuration

What is busbar?

A busbar is a metallic conductor (usually copper or aluminium) used in substations to collect and distribute electric power. It connects multiple incoming and outgoing transmission lines and equipment like transformers within the substation.

Since the busbar is a critical node in the power system, any fault on it can cause widespread outages. Therefore, fast and reliable protection is essential.

Ring Busbar configuration

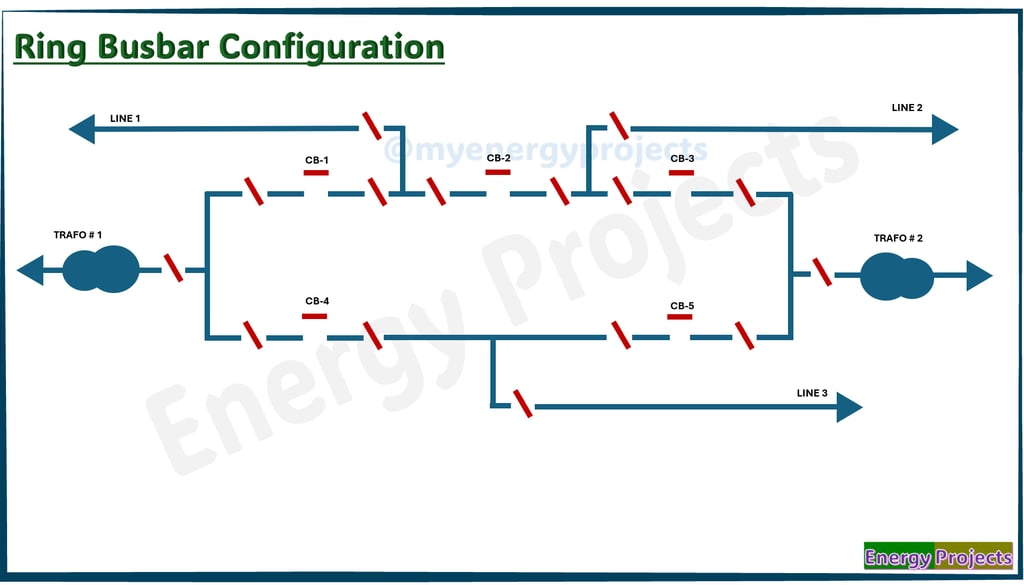

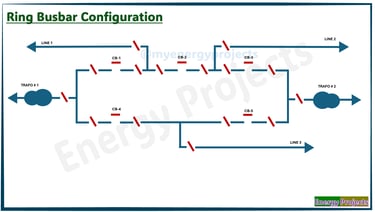

First, we look at the  very simple representation of busbar configuration.

Circuit Breakers (CB1 to CB5): Form the ring structure that connects all circuits.

• Transmission Lines:

  • Line 1 is connected between CB1 and CB2

  • Line 2 is connected between CB2 and CB3

  • Line 3 is connected between CB5 and CB4

• Power Transformers:

  • Transformer 1 is connected between CB1 and CB4

  • Transformer 2 is connected between CB3 and CB5

The ring busbar configuration stands out as one of the most reliable and flexible substation layouts used in modern power systems. Perfectly suited for medium to high-voltage applications, it is especially valuable in critical infrastructure where uninterrupted power delivery and maintainability are essential.

When configured with three transmission lines and two power transformers, the ring busbar becomes a powerhouse of operational efficiency and fault tolerance.

More

• Single Busbar Configuration

• Single Busbar with Bus section Configuration

• Single Busbar with Transfer busbar configuration

• Single Busbar with Bus section + Transfer bus coupler + Section Isolator configuration

• Double Busbar with Bus coupler Configuration

• Double Busbar with Bus coupler + Bypass Isolator Configuration

• Double Busbar with Bus coupler + Transfer Buscoupler configuration

Keep Connected for more updates.....
